I-DAI2 iSigaba esiSinye se-EMI Isihluzi seFuse kunye noHlobo lweSokethi ——Ilinganiswe ngoku 1A-10A

Inkcazelo emfutshane:

■ Izihluzi zeSigaba esinye se-AC 220V EMI/Izihluzo zeNxolo

■ Ikalwelwe ngoku:1A—10A

■ uyilo lwe-pin interface

■ Isihluzo se-EMI ngocinezelo olulungileyo kwimowudi eqhelekileyo kunye nophazamiseko lwemowudi yokwahlula

■ Singabavelisi, sigxile kwiifilitha ze-EMI iminyaka eyi-14

■ Ukuxhasa iisampuli zasimahla

■ Sinesiqinisekiso se-UL ROHS CE


Iinkcukacha zeMveliso

Iithegi zeMveliso

Intshayelelo yemveliso

I-DAI2 Series ye-EMI yokucoca umbane wengxolo yombane ibonakaliswa nguMgangatho we-IEC we-socket interface, uyilo lwemodyuli, umthamo omncinci, ixabiso eliphantsi, kunye nokusebenza kakuhle ekusombululeni uphazamiseko oluphezulu lwe-1mhz-30mhz.Ziye zasetyenziswa ngokubanzi kwiintlobo ngeentlobo zezixhobo zombane, izixhobo zokuvavanya, izixhobo zonyango, umatshini wokuzonwabisa oopopayi, inkqubo yokukhusela umlilo, inkqubo yokubeka iliso edolophini, izixhobo zomsindo, kunye nezinye izixhobo kwindawo enzima yokuphazamiseka kombane, kwaye yi-emi emi icebo lokucoca ngocinezelo olulungileyo lwemowudi eqhelekileyo kunye nophazamiseko lwemowudi.Le mveliso ilula kuyilo, kodwa inokusebenza okungcono, uxhulumaniso olufanelekileyo, ukusetyenziswa kakuhle kunye nexabiso eliphantsi.DAI2 Series EMI umbane umgca ingxolo filter ithandwa kakhulu kwimarike phesheya, kwaye abathengi abaninzi kulo lonke ihlabathi uqhagamshelane nathi ukuthenga isambuku.Iimveliso zethu zikumgangatho ophezulu kwaye ziyafikeleleka.Sikwangumvelisi oqeqeshiweyo eTshayina.I-MOQ yethu ayikho phezulu.Ukuba ufuna iisampulu, ungaqhagamshelana nathi kuqala.Siza kubonelela ngeisampulu ukuze ujonge umgangatho.

Iimbonakalo

■ Isihluzo se-EMI seSigaba esinye seFuse kunye noHlobo lweSokethi

■ uyilo lwe-pin interface

■ Umlinganiselo ophezulu wokusebenza kwimoke yeendleko

■ Isihluzo se-EMI ngocinezelo olulungileyo kwimowudi eqhelekileyo kunye nophazamiseko lwemowudi yokwahlula

Iimeko zesicelo

zxdg (1)

Umatshini womdlalo

zsegf (7)

Izixhobo zonyango

zxdg (5)

Inkqubo yokuhlola ukhuseleko ezidolophini

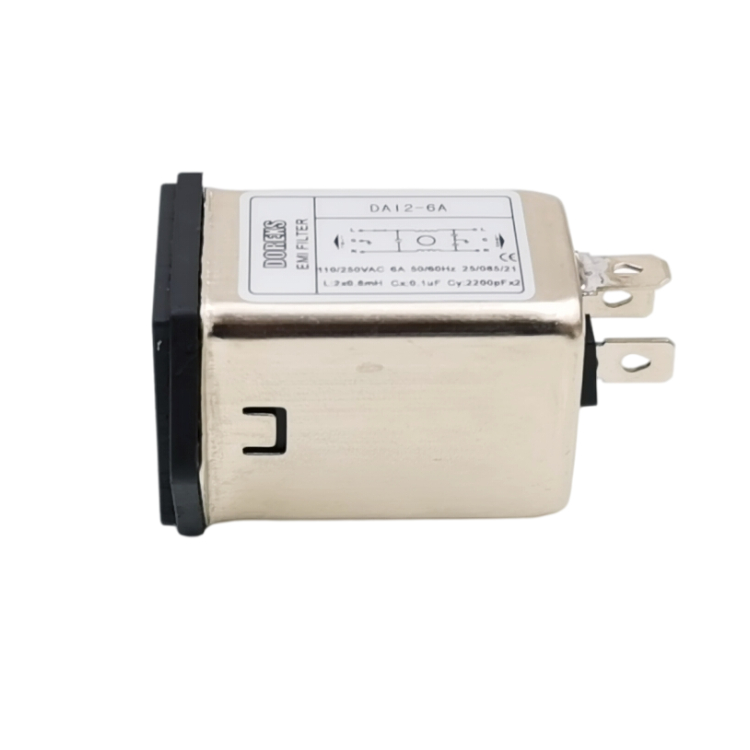

Ulwazi lwemveliso

 fhdf (4)

Umbane olinganisiweyo

1115/250VAC

Ukuphindaphinda komgca

50/60Hz

Uvavanyo lweVoltage

1500VDC (umgca/umgca)

2150VAC (umgca/umhlaba)

I-Insulation Resistance

>50MΩ@500VDC

Udidi lweMozulu

25/085/21

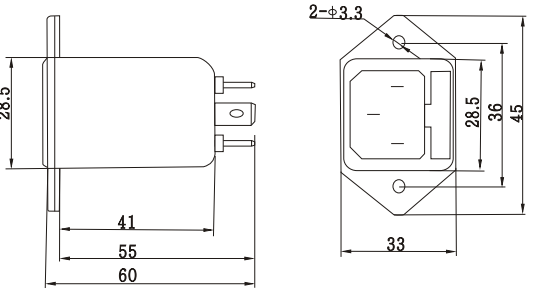

Umzobo wangaphandle kunye nemilinganiselo (mm)

DBI5EM ( (12)

Uluhlu lweemveliso jikelele

Icandelo elinguNomb.

Ikalwe ngoku

Ukuvuza kwangoku

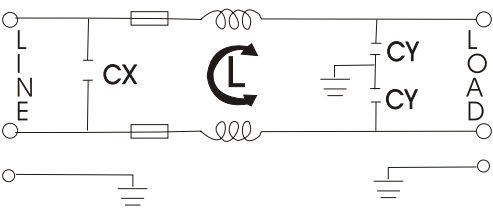

Izicwangciso zoMbane

Isiqinisekiso sokhuseleko

I-DAI2-1A

1A

<0.5mA

DAI2(1~4





CUL, CE



CQC,ROHS



I-DAI2-3A

3A

<0.5mA

I-DAI2-6A

6A

<0.5mA

I-DAI2-10A

10A

<0.5mA

Le parameter yimveliso ecacileyo kuphela, sixhasa iparameter ngokwezifiso

Ilahleko yokuFaka

zsegf (13)
zsegf (15)

DBI5EM ( (12)

I-DAI2-1A

DBI5EM ( (12)

I-DAI2-6A

DBI5EM ( (12)

I-DAI2-3A

DBI5EM ( (12)

I-DAI2-10A
